2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

Pitch : 250µm

Total length : 100 +10/-0 cm

Fiber type : G657A1 ribbon fiber

Insertion loss : IL < 0.3

Contact Now

GRACYFIBER · PRODUCT SOLUTIONS

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

Custom 2CH Fiber Array 2 Channel FAU 127um 250um Pitch SMF-28e G657A1 OM1 Fiber 0 Degree 8 Degree Polish Lidded Lidless FC/APC FC/UPC Optical Fiber Assembly

2-Channel SMFA, A-type 8° angle, G657A1 ribbon fiber, 250µm pitch, total length (including FA): 100 +10/-0 cm, V-groove dimensions: 10 × 2.5 × 1.5 mm (groove length: 5 mm), lid dimensions: 4.7 × 2.5 × 1.0 mm (L × W × T), IL < 0.3

PRODUCT · 01

2-Channel SMFA, A-type 8° angle, G657A1 ribbon fiber, 250µm pitch, total length (including FA): 100 +10/-0 cm, V-groove dimensions: 10 × 2.5 × 1.5 mm (groove length: 5 mm), lid dimensions: 4.7 × 2.5 × 1.0 mm (L × W × T), IL < 0.3

PN

910001702-06

Unit

USD

Estimated Price

3.800

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

2-Channel SMFA, V-type 8° angle, SMF-28e, 250µm pitch, total length (including FA): 100 +10/-0 cm, V-groove dimensions: 10 × 2.5 × 1.5 mm (groove length: 5 mm), lid dimensions: 4.7 × 2.5 × 1.0 mm (L × W × T)

PRODUCT · 02

2-Channel SMFA, V-type 8° angle, SMF-28e, 250µm pitch, total length (including FA): 100 +10/-0 cm, V-groove dimensions: 10 × 2.5 × 1.5 mm (groove length: 5 mm), lid dimensions: 4.7 × 2.5 × 1.0 mm (L × W × T)

PN

910001702-07

Unit

USD

Estimated Price

3.800

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

fiber arrays 127 um pitch, 8 degrees polished and SMF/SMF fibers, 2 channel, lidless, small glass block (1.5x1.5x5mm DWG#:910001702-04-2CH 127P A8 SMFA A2

PRODUCT · 03

fiber arrays 127 um pitch, 8 degrees polished and SMF/SMF fibers, 2 channel, lidless, small glass block (1.5x1.5x5mm DWG#:910001702-04-2CH 127P A8 SMFA A2

PN

910001702-04

Unit

USD

Estimated Price

3.800

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

fiber array 2ch 250P 49D Lidless SMFA-FC_APC.

PRODUCT · 04

fiber array 2ch 250P 49D Lidless SMFA-FC_APC.

PN

910001702-14

Unit

USD

Estimated Price

13.600

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

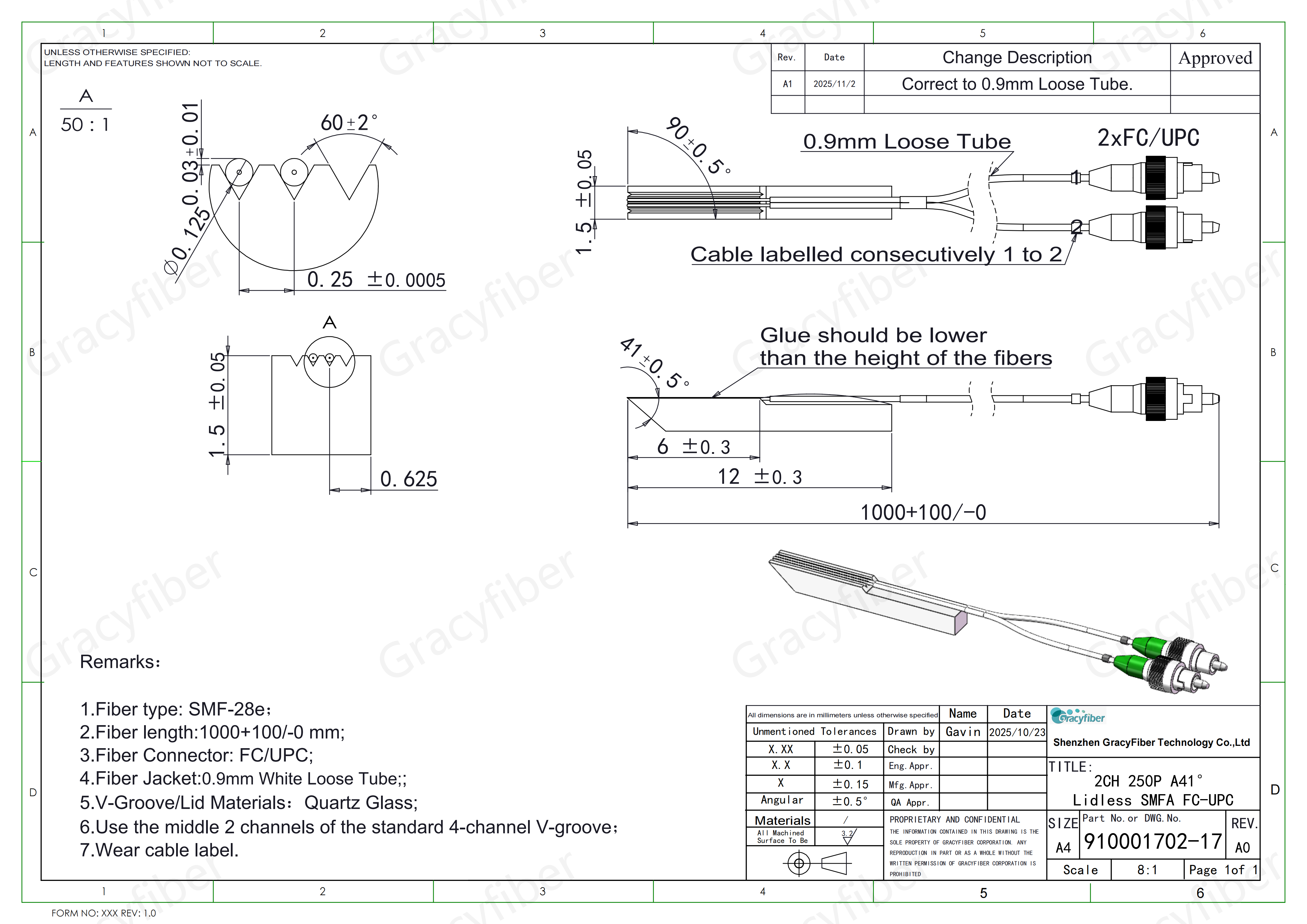

ChannelCount:2Fiber,Type:SMF-28e,Length:1meter,Labels:Yes,ArrayType:Lidless,Pitch:250μm,PolishingAngle:~41°,ConnectorType:FC-UPC

PRODUCT · 05

ChannelCount:2Fiber,Type:SMF-28e,Length:1meter,Labels:Yes,ArrayType:Lidless,Pitch:250μm,PolishingAngle:~41°,ConnectorType:FC-UPC

PN

910001702-17

Unit

USD

Estimated Price

18.500

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

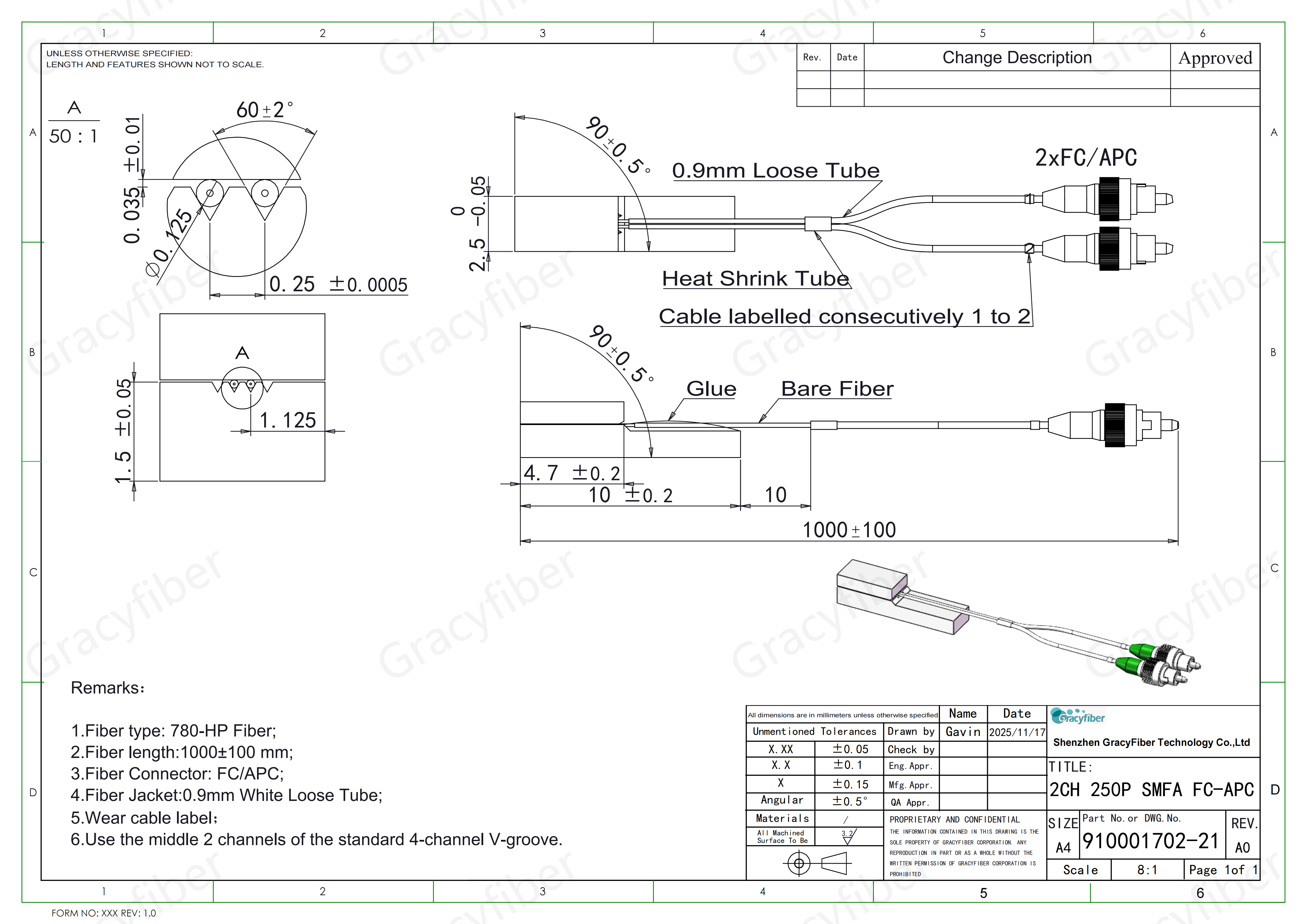

(SM) 2-channel 780HP fiber array, 250 um pitch, polishing angle:0 degrees, FC/APC connectors

PRODUCT · 06

(SM) 2-channel 780HP fiber array, 250 um pitch, polishing angle:0 degrees, FC/APC connectors

PN

910001702-21

Unit

USD

Estimated Price

20.000

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

2-channel SMF-28 fiber array with a 1.6 mm pitch and 8 degree polish as shown below

PRODUCT · 07

2-channel SMF-28 fiber array with a 1.6 mm pitch and 8 degree polish as shown below

PN

910001702-24

Unit

USD

Estimated Price

25.000

2CH Fiber Array Assemblies | Custom 2-Channel Optical Fiber Arrays

5 units of OM1 MM fiber 2CH FA 396.1um pitch 8degree horizontal polish; FC/APC connector

PRODUCT · 08

5 units of OM1 MM fiber 2CH FA 396.1um pitch 8degree horizontal polish; FC/APC connector

PN

910001702-30

Unit

USD

Estimated Price

18.000
