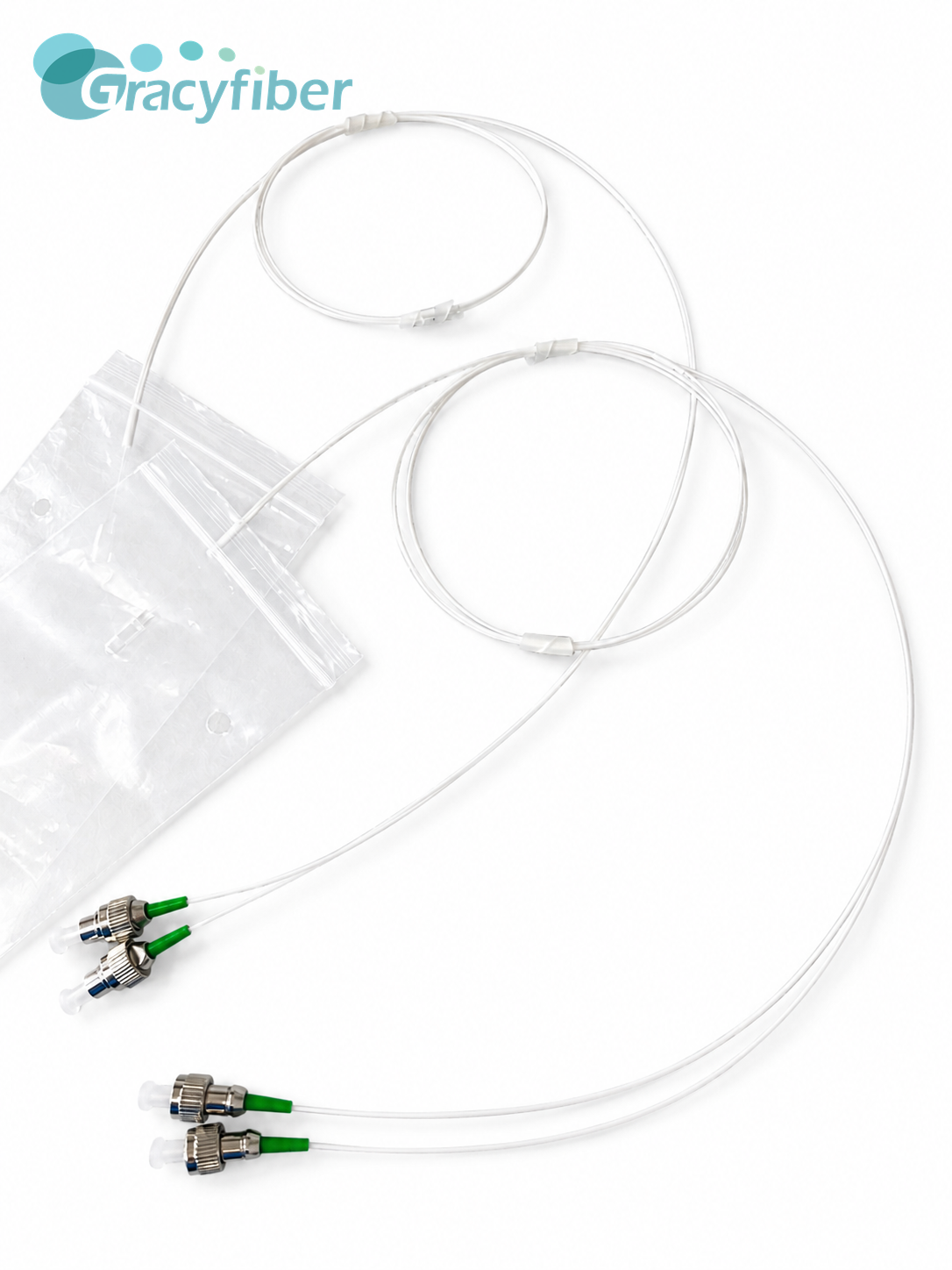

2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low

  • 1
  • 2

Model Number : 910001702-29

Channel Spacing : 250μm

Polishing Angle : 0°

Insertion Loss : ≤0.3dB

Fiber Type : Nufern UHNA7+G657A2

Contact Now

2-Channel Single Mode Fiber Array (SM FA) | 250μm Pitch, Quartz Glass, 0° Flat Polished | UHNA7 & G657A2 Spliced Fiber, FC/APC Connector
Product Overview

The 2-channel single-mode fiber array (2CH SMFA) is designed for high-precision beam coupling and high-density photonic integration.

2CH SMFA Fiber Array，2CH Single Mode Fiber Array，2CH MFD Conversion Fiber Array | 250μm Pitch, 0° Angle | Nufern UHNA7 to G657A2 Spliced | FC/APC, Low
Features
Parameters Unit Spec. Value
Channel / 2 OK
Material / Quartz Glass OK
Channel Spacing μm 250 OK
Polishing Angle Degree A0° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3 0.15
　
　
　
Fiber Type / Nufern UHNA7+G657A2 OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • 2-Channel High-Precision Single-Mode Fiber Array Design
  • Precision Fusion Splicing of Nufern UHNA7 and G657A2 Heterogeneous Fibers
  • Extremely Low Insertion Loss (IL ≤ 0.3dB, Typical 0.15dB)
  • Precise 250μm Channel Spacing
  • Standard 0° (A0°) Endface Grinding Angle
  • Compact Quartz Glass Cover Package (10×2.5×2.5mm)
Applications
  • Silicon Photonic Integrated Circuit (PIC) Chip Coupling
  • Planar Optical Waveguide Circuit (PLC) Device Packaging
  • High-Speed ​​Optical Communication Transceiver Module Optical Interconnects
  • High-Precision Optical Test and Measurement Instruments
  • Micro/Nano Optical Devices and Waveguide Array Interconnects
