1. Features
Ø Low Insertion loss
Ø High Extinction Ratio
Ø Compact Design
Ø Good Channel-to-channel Uniformity
Ø Wide Operating Wavelength
Ø High Reliability and Stability
2. Applications
Ø Coherent communication
Ø Fiber Optic Gyroscope
Fiber Sensor
3. Specifications
| Parameters | Unit | Value |
| Operating Wavelength | nm | 1260~1650 |
| Test Wavelength | nm | 1550 |
| Insertion Loss | dB | ≤8.2 |
| Uniformity | dB | ≤0.8 |
| Extinction Ratio | dB | ≥18 |
| Return Loss | dB | ≥50 |
| Directionality | dB | ≥50 |
| Pigtail | / | Input:0.9m blue hytrel tube Output:3.0mm yellow PVC Tube |
| Input & Output Length | m | 0.5±0.03 |
| Connector | / | Input=FC/APC(slow axis work), Output=MPO/APC(male)-(Fast axis work) |
| Fiber Mark | / | Numbering tube |
| Package Dimension | mm | 100×80×10 |
| Power | mW | 300 |
| Operating Temperature | ℃ | -5~+65 |
| Storage Temperature | ℃ | -40～+85 |
| Fiber Type | / | PM 15-U25D |
FAQ
1. How do you ensure high polarization extinction ratio (PER) and low loss in a dual-array structure?

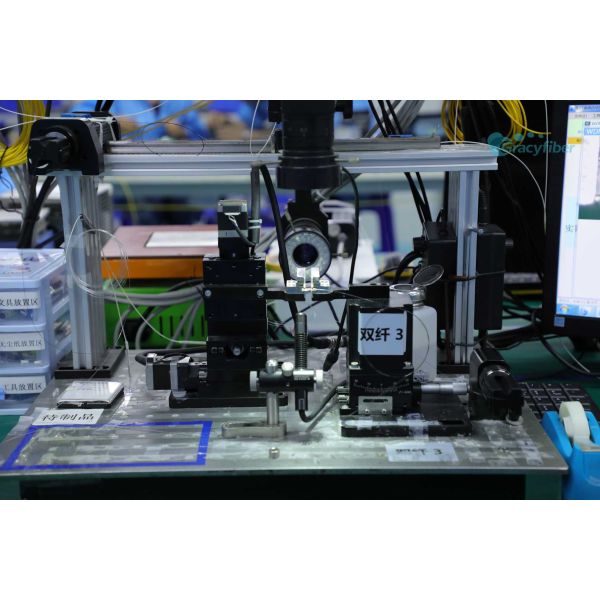

The core of polarization-maintaining devices lies in the precise alignment of the polarization axis. Leveraging mature semiconductor-level coupling and alignment processes, we ensure that both 1x4 channels exhibit extremely low insertion loss (IL) and excellent channel uniformity. Simultaneously, the single-channel polarization extinction ratio (PER) remains stable at ≥ 20 dB. Before shipment, each port undergoes 100% rigorous 3D interferometer and high-precision polarization state testing.
2. Do you support deep customization (OEM/ODM) of polarization axis alignment, package size, and interfaces?
Fully supported. As a source factory with strong R&D capabilities, we offer highly flexible customization services. You can precisely specify slow axis alignment (default) or fast axis alignment; for packaging, we offer various forms such as micro steel tubes and compact ABS boxes; and we can customize high-precision FC/APC connectors with narrow keys and specific fiber lengths according to drawings.
