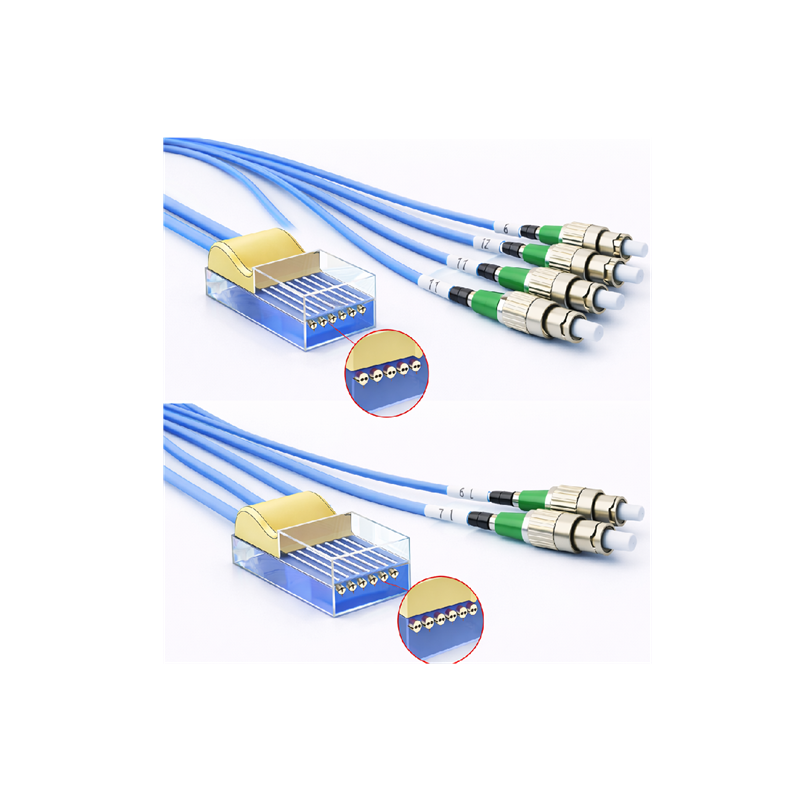

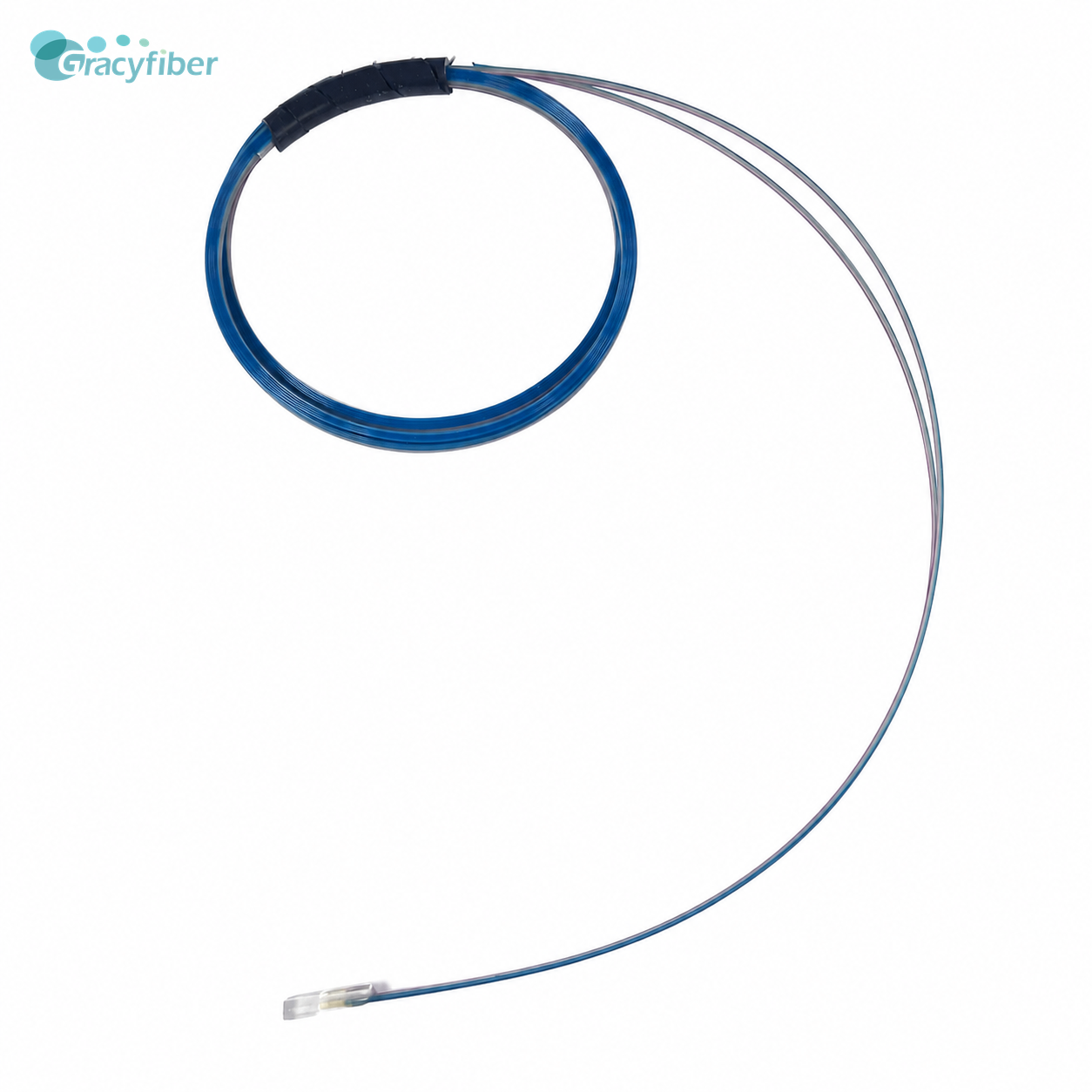

PM FA Fiber Array (Polarization-Maintaining Fiber Array) — 1CH, 2CH, 4CH, 8CH, 12CH, 16CH, 24CH, 32CH, 48CH, 64CH, 96CH, 128CH — for Silicon Photonics, PLC, AWG, and Optical Modules
1. Product Description
This product utilizes Panda PM fiber as its standard configuration while also supporting custom Bow-tie fiber options, offering excellent polarization-maintaining performance and axial consistency.
2. Key Features
| Parameter |
Unit |
1 |
2 |
4 |
8 |
12 |
16 |
24 |
32 |
48 |
64 |
96 |
128 |
| Wavelength |
nm |
460,630,780,850,980,1060,1310,1550,1650,1950 |
| Materials |
- |
Pyrex, Tempax, Quartz, Silicon |
| Lid Option |
|
Lid / Lidless |
| CorePitch |
- |
- |
250 |
127/250 |
127/250 |
127/250 |
127 |
127 |
127 |
127 |
127 |
127 |
127 |
| Core Pitch Tolerance |
μm |
+/-0.3 |
+/-0.5 |
+/-0.7 |
+/-1.0 |
| Polish Angle |
Degree |
8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°) |
| Angle Type |
- |
A Type or V Type |
| Insertion Loss |
dB |
≤0.5(Typical 0.3) |
| Polarization Extinction Ratio (PER) |
dB |
≥20 (Typical ≥23) |
≥18 (Typical ≥20) |
| Polarization Axis Reference |
- |
Slow axis / Fast axis |
| Axis Orientation |
Degree |
0° /45°/ 90° / Customized |
| Axis Alignment Accuracy |
Degree |
≤ ±2° (Typ. ±1°) |
| Return Loss |
dB |
UPC≥45, APC≥55 |
| FA Dimension |
W |
mm |
2.5 |
2.5 |
2.5 |
2.5 |
3.5 |
3.5 |
5.7 |
5.7 |
9 |
10 |
15 |
19.2 |
| H |
mm |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
| L |
mm |
10 |
10 |
10 |
10 |
10 |
12 |
12 |
12 |
12 |
12 |
15 |
18 |
| - |
- |
Standard or Customized |
| PM Fiber Type |
- |
Panda PM (standard) / Bow-tie (optional) |
| Fiber Coating |
um |
250 µm / 900 µm loose tube / ribbon (optional) |
| Fiber Type Length |
cm |
100+/-10 or customized |
| Connector |
- |
.FC/LC/SC/E2000/MT/MPO/MMC |
| Operation Temperature |
°C |
-5~65 |
| Storage Temperature |
°C |
-40~85 |
3. Applications
- Silicon Photonics Chip Coupling
- PLC Optical Splitters
- AWG Wavelength Division Devices
- Polarization-Maintaining Fiber Array Packaging
- Coherent Optical Communication Modules
- Optical Test Platforms
- High-Density Optical Interconnect Systems
- OEM Optical Communication Components
FAQ
1. How to ensure the 128-channel ultrawide array endfaces are protected from microparticle contamination and physical damage during cross-border logistics?
We have designed the highest level of industrial protection for ultra-high-density semiconductor-grade optical arrays. The 128CH polished endfaces, extending for tens of millimeters, are all designed with a suspended protection feature and covered with custom dust covers, completely isolating them from microparticle contamination. Each device, after standardized fiber optic cable management, is independently fixed in an anti-static blister pack or high-density shock-absorbing pearl cotton, and then nested in a sturdy, thickened corrugated cardboard box. This complete solution completely mitigates mechanical vibration and stress damage during long-distance air or sea transport, ensuring the product arrives at your cleanroom perfectly undamaged.
2. Do you provide technical support for multi-channel silicon optical waveguide coupling design or thermal stress assessment?
Absolutely. Our international R&D and engineering team has over 25 years of deep technical expertise in high-density micro-optical packaging. Whether it's complex theoretical boundary calculations of 128-channel overall waveguide coupling loss, cumulative analysis of full array pitch tolerance, or optimization of anti-reflective endface design, we can provide you with expert-level remote technical consultation via video conferencing or email.
