Product Description

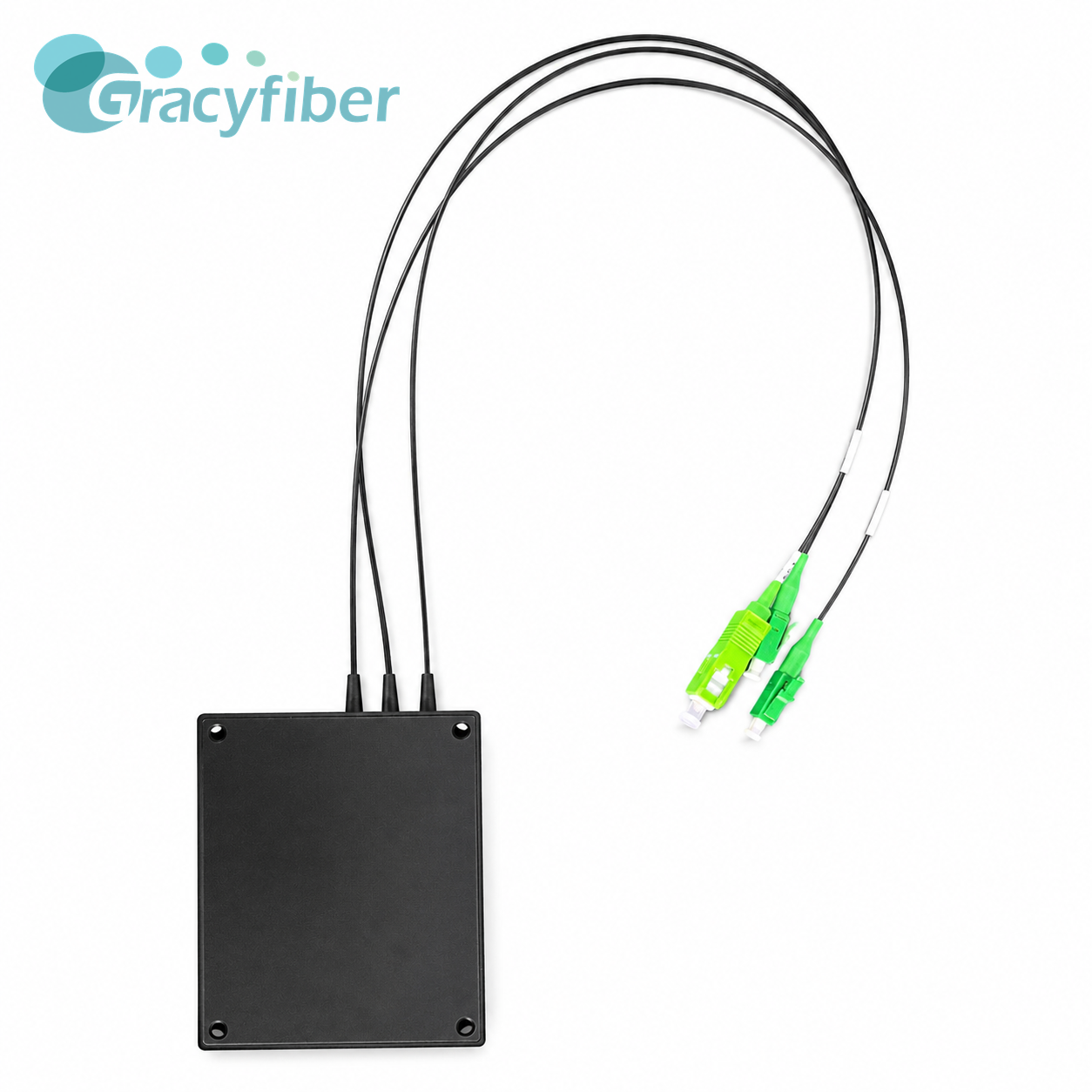

This DWDM Multiplexer OADM is a Dense Wavelength Division Multiplexing (DWDM) and Optical Add-Drop Multiplexing (OADM) module designed for high-capacity optical transmission networks.
Key Features
| Parameter |
Unit |
Value |
| Operating Wavelength |
nm |
1525~1565 |
| Special Port |
nm |
Monitor,1310 (1260~1360) |
| Center Wavelength |
nm |
ITU Grid(C11 ~C64) or Customized |
| Channel Spacing |
nm |
100GHz (0.8nm), 200G(0.8nm) |
| Channel Passband |
Min |
nm |
±0.11 (100GHz), ±0.25 (200GHz), |
| Channel |
- |
2CH |
4CH |
8CH |
16CH |
32CH |
| Port Insertion Loss |
Max |
dB |
1.3 |
1.8 |
2.8 |
4.5 |
4.8 |
| Isolation |
Adjacent |
dB |
≥30 |
≥30 |
≥30 |
≥30 |
≥30 |
| Non-adjacent |
dB |
≥40 |
≥40 |
≥40 |
≥40 |
≥40 |
| 1310 Port |
Max |
dB |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
| Ripple |
Max |
dB |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
| PDL |
Max |
dB |
0.5 |
| Return Loss |
Min |
dB |
40 |
| Directivity |
Min |
dB |
50 |
| Power Handing |
Max |
mW |
300 |
| Fiber Type |
- |
G67A1/ A2/ B3 or SMF-28 |
| Fiber Coating |
um |
250 µm / 900 µm loose tube |
| Fiber Length |
mm |
1000 |
| Connector |
- |
LC/UPC or Customized |
| Dimensions (HxWxD) |
mm |
80x58x8, 120x80x18, 155x129x29, 482x250x44 |
| Operating Temperature |
°C |
-5~65 |
| Storage Temperature |
°C |
-40~85 |
Applications
- DWDM Optical Transmission Systems
- OADM Optical Add/Drop Multiplexing Nodes
- Metro and Backbone Network Deployment
- Optical Line Monitoring and Maintenance
- Data Center Optical Interconnects
- WDM Multiplexing and Demultiplexing Equipment
- Optical Communication Test Platforms
- OEM Optical Communication Modules
FAQ
1: What packaging and fiber optic configurations are available?
A: This module supports modular and rack-mount packaging, with dimensions including 80×58×8 mm, 120×80×18 mm, 155×129×29 mm, and 482×250×44 mm. Fiber optic options include G657A1/A2/B3 or SMF-28, with fiber coating options of 250 µm or 900 µm loose tube. The standard fiber length is 1000 mm.
2: Can I purchase samples for testing first? How are lead times and discounts confirmed for bulk orders?
A: Yes. This product has an MOQ of 1 piece, suitable for engineers to conduct sample verification, link budget testing, port function confirmation, and system compatibility assessment. The page shows a monthly supply capacity of 100,000 pieces; lead times and discounts for bulk orders will be assessed based on the number of channels, port configuration, packaging type, connectors, testing requirements, and purchase quantity. Tiered pricing and partial deliveries are supported.
